CK-4 Remote Programmer Device

Product Code : CHZ.160

Please use Vendor Login to see the price of the product.

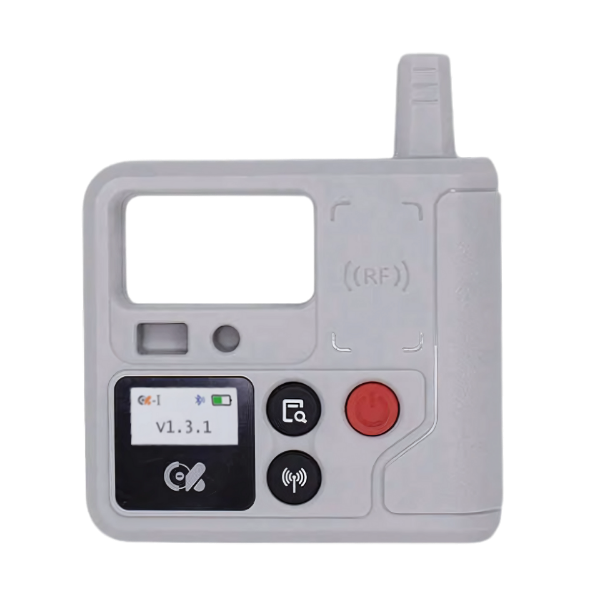

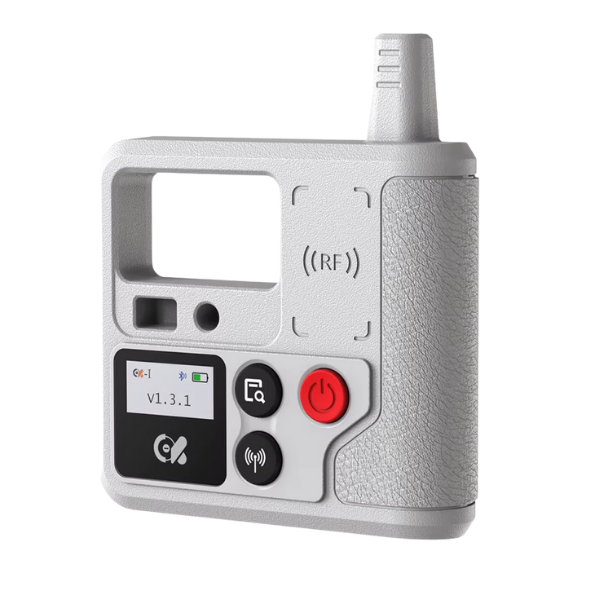

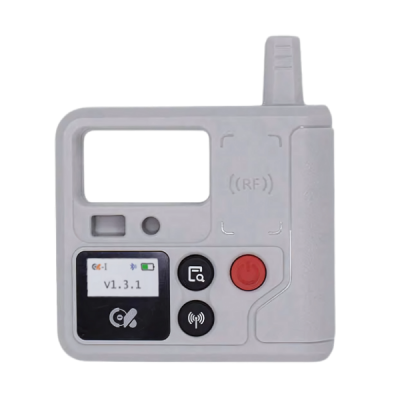

CK IV Cube Key Tool Introduction

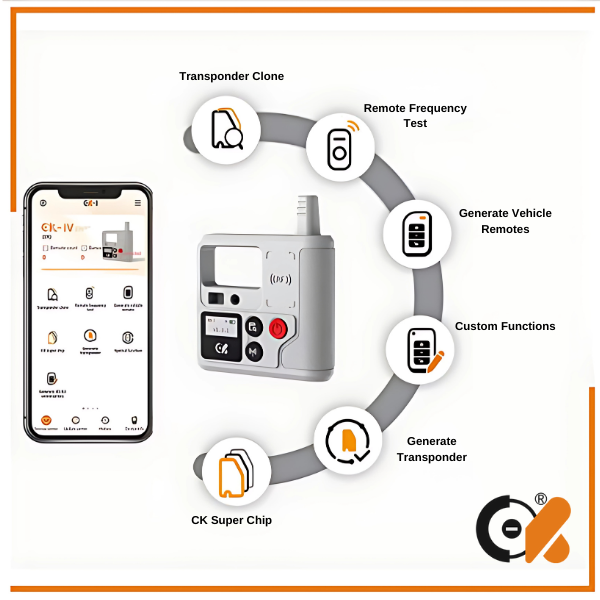

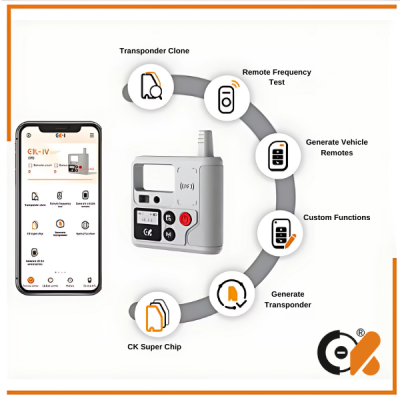

CK IV is a professional multifunctional intelligent device. Equipped with wireless Bluetooth and a 0.91-inch LCD display screen, it has the characteristics of simple operation, clear interface, and convenient use. The device supports functions such as frequency detection, remote control generation, remote control copying, chip recognition / editing / decoding / copying, dedicated chip generation, chip acquisition, key unlocking copying, networking program burning, online upgrading, etc. It has become an intelligent device with simple operation, stable performance, and wide coverage of vehicle models.

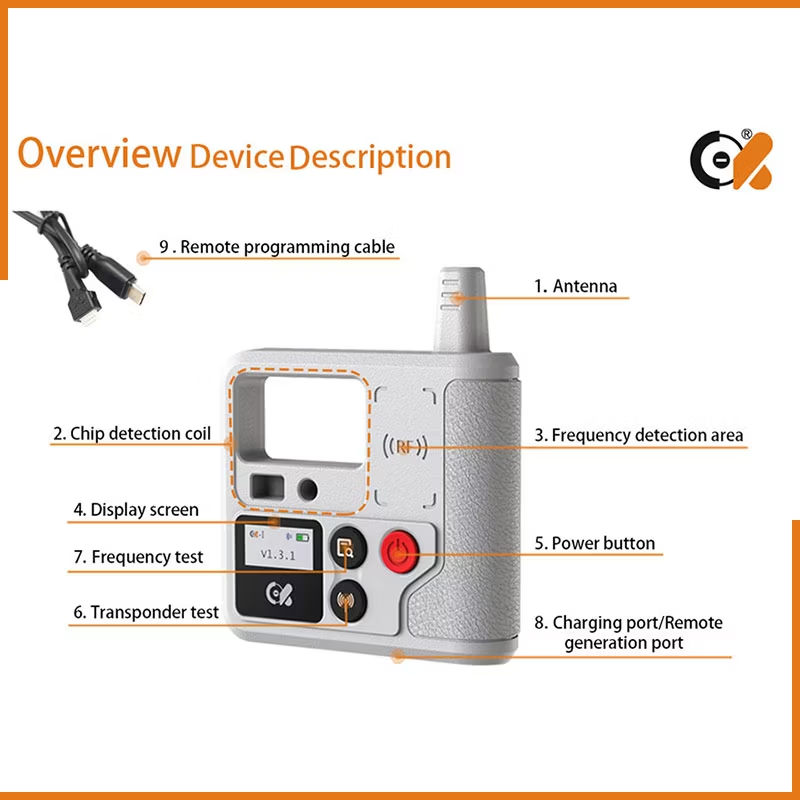

1. Antenna
This antenna is used for coil failure detection, PKE antenna search, decoding data acquisition.

2. Chip identification area
In standby mode, short press the button to quickly identify the chip type, and long press the identification button to enter the coil detection function.

3. Frequency detection area
It can test most remote control frequency signals on the market, detect debugging methods, and place the remote control close to the detection area during testing.

4. Display screen
When testing the remote control frequency, the indicator light will flash according to the remote control signal.

5. Power on/off button
In the shutdown state, press and hold the power button for 3 seconds to turn on the device
Press and hold the power button for 5 seconds to turn off the device when it is turned on
Restart, press and hold the power button for more than 10 seconds until the restart is recognized

6. Chip identification
Supports identification and copying of most chips on the market, such as 46, 4D, 48, 8A and other chips. The chip data can be identified and edited through the APP.

7. Frequency detection button
Short press this button in standby mode to enter remote frequency detection.

8. Charging indicator
When not charging, this logo does not light up. When charging, it lights up in red, and when fully charged, it displays in green. It bears the fault and flashes alternately in red and green.

9. Charging port/Remote generation port
Please use a 5V 1A charging head to connect the TYPE-C data cable to charge this device. When the battery is fully charged, the device will automatically stop charging the battery to protect the battery.

Device Connection

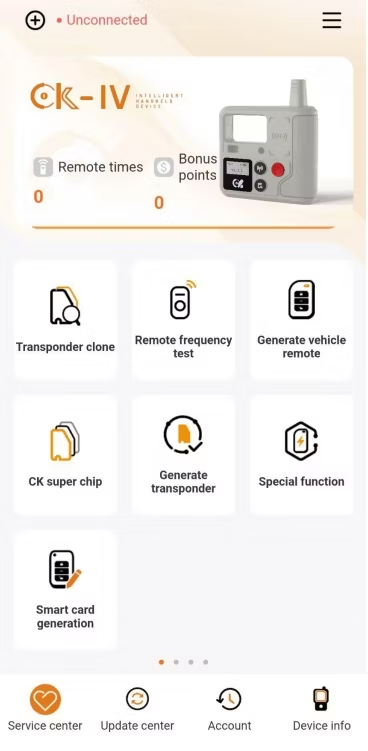

After scanning the QR code to download the APP, click on the icon in the upper right corner, click the scan button, and the device will scan CK IV when it is turned on normally. Click to connect, and then enter the image below

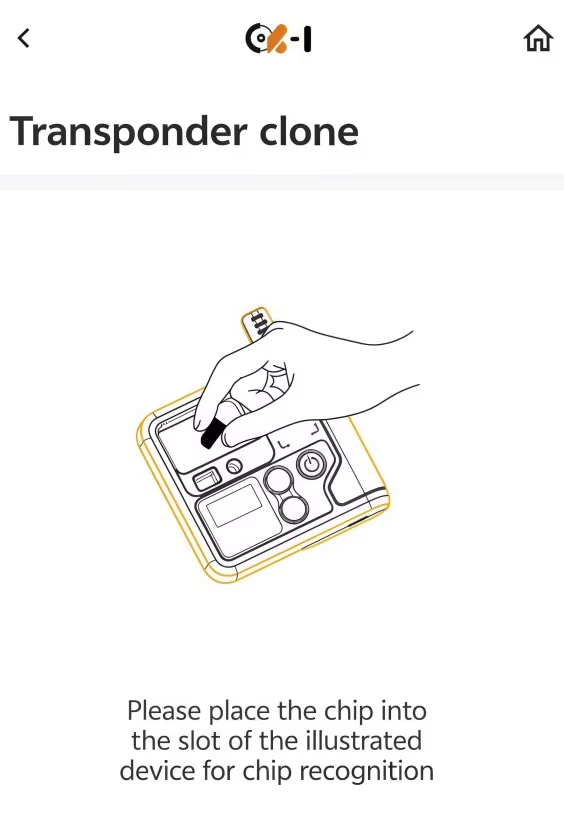

Identify copies

When it is necessary to recognize copied or edited chips, use this function to place the chip according to the device prompts, and then click on chip recognition. Depending on the chip, the APP will display different data and supported functions.

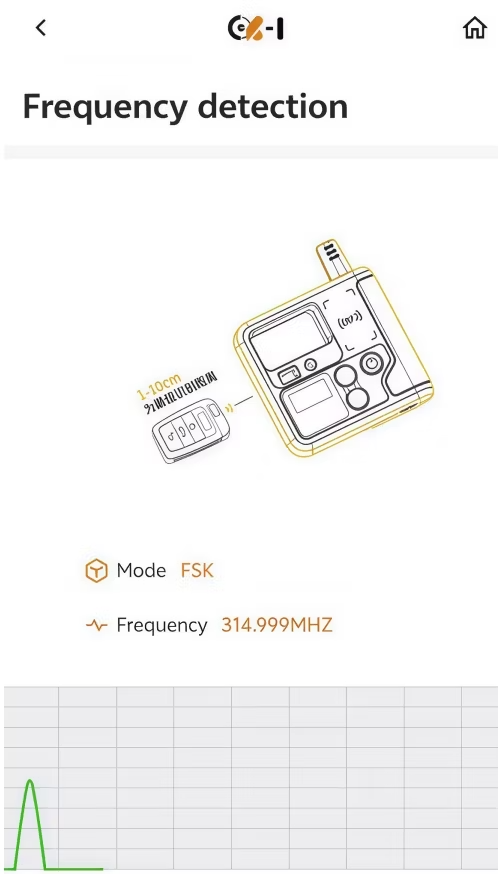

Frequency detection

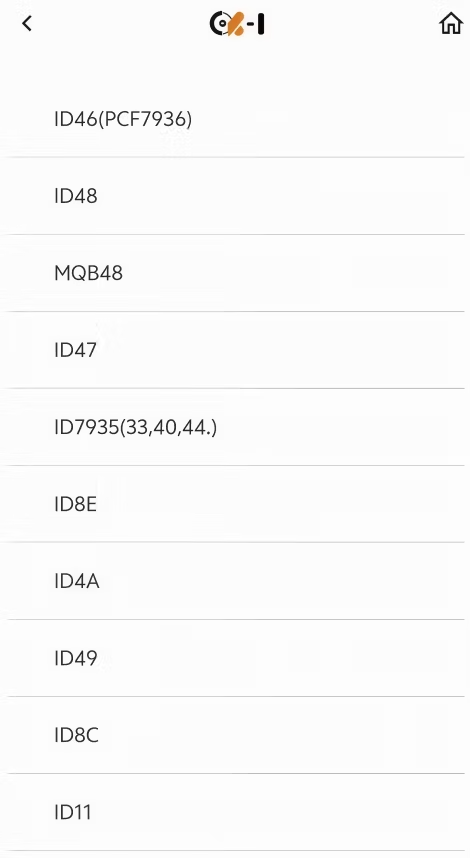

Chip generation

Multi mode chips support conversion of dedicated chip types: 11, 12, 13, 7935, 7936, 7937, 7938, 7939, 7946, 7947, 48, 40, 4D, 8E, 8A, 8C, and other commonly used chips can all be converted using multi-mode chips.

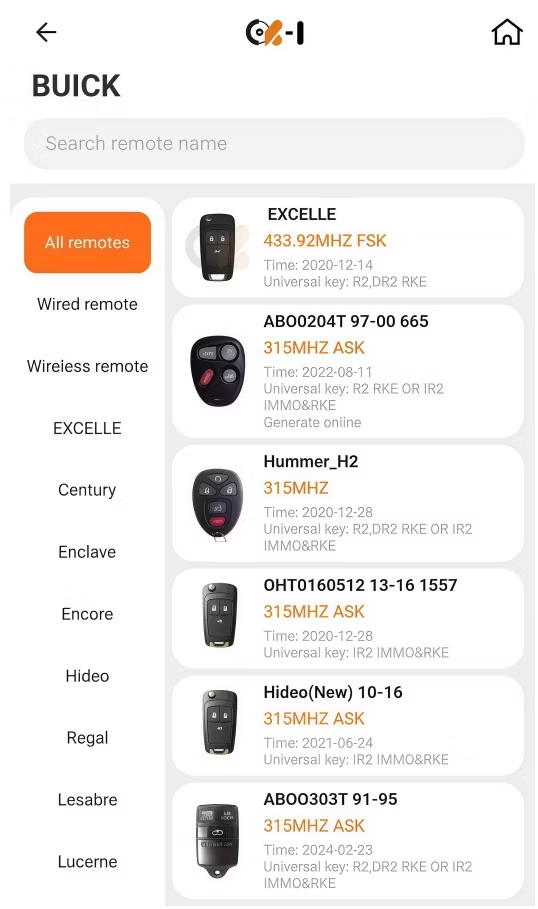

Automobile remote control generation

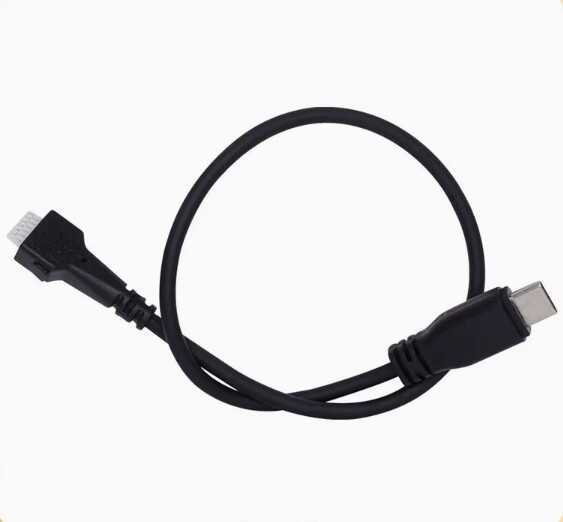

Support remote control generation for numerous brand car models in regions such as China, Europe, America, and Asia, with the number constantly increasing and upgrading. Connect the dedicated generation line to the remote control sub machine, enter theremote control generation menu, and select according to different regions
The corresponding vehicle model is generated by the sub machine.

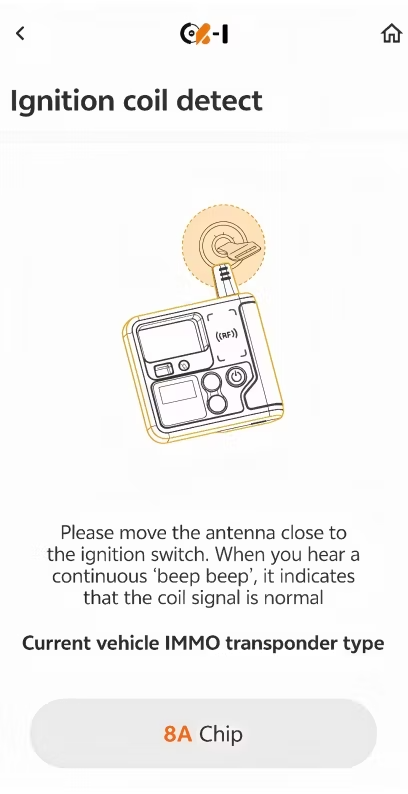

Coil recognition

This function can detect the quality of PKE and IMMO antennas. Place the antenna of the testing instrument close to the car antenna and observe the prompts on the testing instrument to help determine if the antenna is working properly. This function can also detect the IMMO type of the car

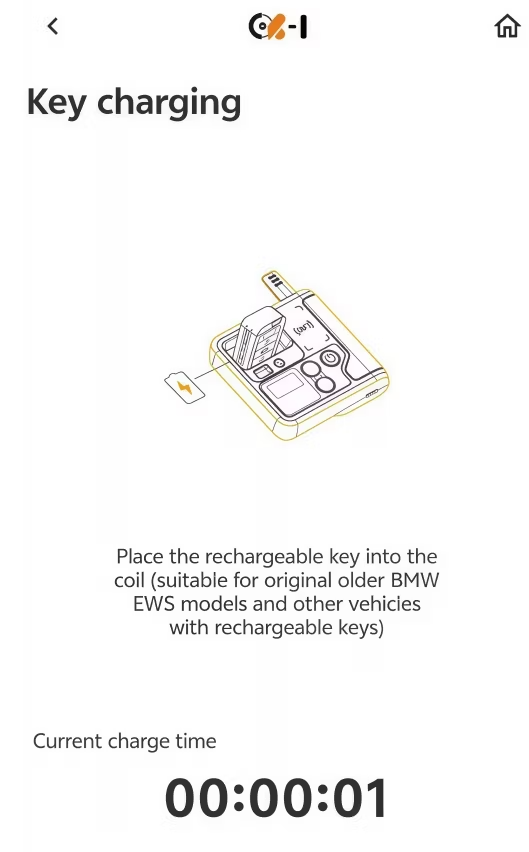

Key charging

At present, some high-end car keys have charging functions, usually referring to electronic keys or smart keys. This type of key typically uses rechargeable batteries as a power source and is charged through wireless charging technology. Here are some common questions and answers about the charging function of car keys:

1. How to charge: Generally speaking, you can use this device to charge keys that

support wireless charging. Place the key as shown in the picture and enter the charging

menu.

2. Charging time: The charging time depends on the battery capacity of the key and the

power of the charging device. Generally speaking, the charging time is not too long and

can be completed in a few hours.

3. Charging frequency: The charging frequency varies depending on the usage situation.

Generally speaking, based on the usage of the key, it is recommended to charge it when

the battery level is low. The specific charging frequency depends on the specific situation

and can be determined based on the key's usage time and user manual.

4. It should be noted that not all car keys have charging function. If your key does not

have a charging function, it is usually necessary to replace the battery to maintain normal

use.
